JUNIPER: ACX2200 ROUTER WITH FANLESS PASSIVE COOLING

Optimized for high quality mobile broadband networks

This compact, environmentally hardened router includes four copper 10/100/1000 Mbps interfaces, four combination copper/fiber GbE ports, two GbE SFP ports and two 10GbE SFP+ ports, making it ideal for IP-RAN deployments.

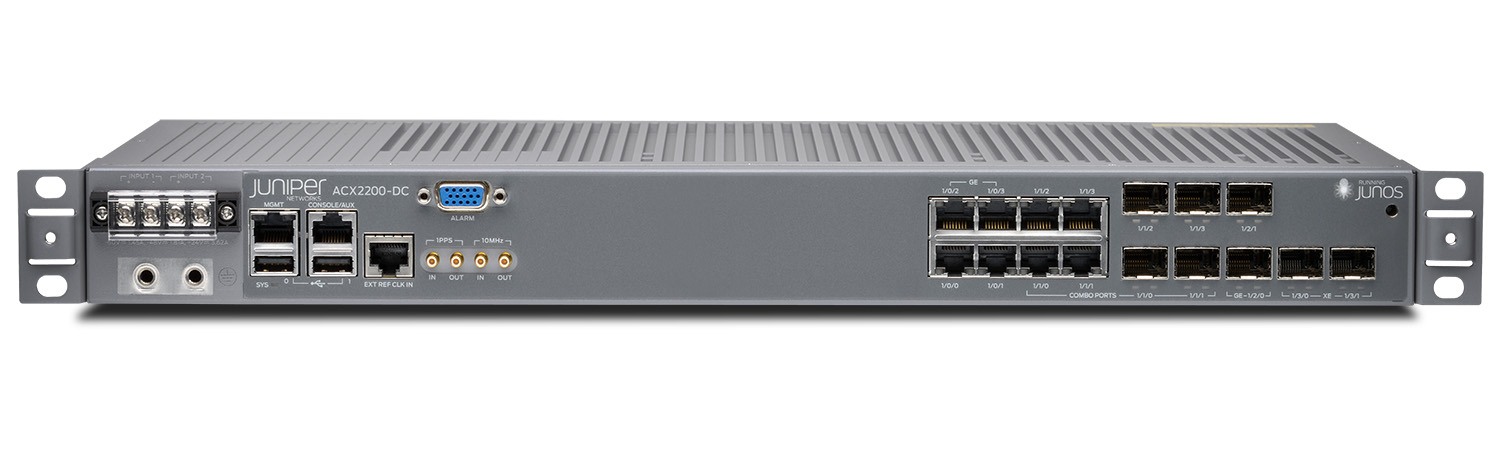

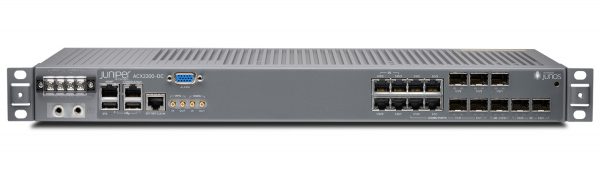

The compact, Ethernet only environmentally-hardened ACX2200 router with fanless passive cooling has a fixed port configuration that includes four copper 10/100/1000Mbps interfaces, four combination copper/fiber GbE ports, two GbE SFP ports, and two 10 GbE SFP+ ports.

A built-in service engine makes the ACX2200 fully customizable and future-proof for LTE-A and 5G requirements. The scalability and reliability of the ACX2200 improves customer satisfaction, while lowering the total cost of operating, maintaining, and updating the network infrastructure for service providers and enterprises.

ACX Series Universal Access Routers are a family of next-generation access routers that address the new network imperatives with up to three times the total throughput of competitive solutions. These routers provide a seamless, end-to-end service delivery platform that can grow and adapt to changing subscriber expectations and traffic demands.

• Adaptive Service Architecture has operational intelligence for the access network to grow with business needs.

• Flexible Architecture supports carrier Ethernet, L2, L3, MPLS, traffic engineering, CAC, and simplified service provisioning and operation.

• Rapid, Remote Provisioning for easy management is provided using Junos Space Services Activation Director.

• Scale and Performance up to 60 Gbps with GbE and 10GbE support facilitate the move to 3G/4G/LTE, with wide interface range for T1/E1, GbE, 10GbE, and PoE++.

• Clocking Technologies include SyncE and IEEE 1588-2008 for highest quality of experience (QoE).

• Junos SDK ensures easily customized provisioning and integration with third-party apps and tools.

• Environmental Hardening in 1 U models include passive cooling for outdoor deployment.

System Throughput  Up to 60 Gbps
Interface Support  4xGbE Copper, 4xGbE Combo (Copper/Fiber), 2xGbE (SFP), 2x10GbE (SFP+)
Dimensions (W x H x D)  17.5 x 1.75 x 9.4 in (44.5 x 4.4 x 24 cm)
Maximum Weight  8.3 lb (3.77 kg)
Power (DC)  -48V telco nominal or
-60V telco nominal or
+24 VDC nominal
Power (AC)  90 to 240 V AC
Power Draw  60W (ACX2200-AC), 80W (ACX2200-DC)
