JUNIPER: MX240 3D UNIVERSAL EDGE ROUTERJUNIPER: MX240 3D UNIVERSAL EDGE ROUTER

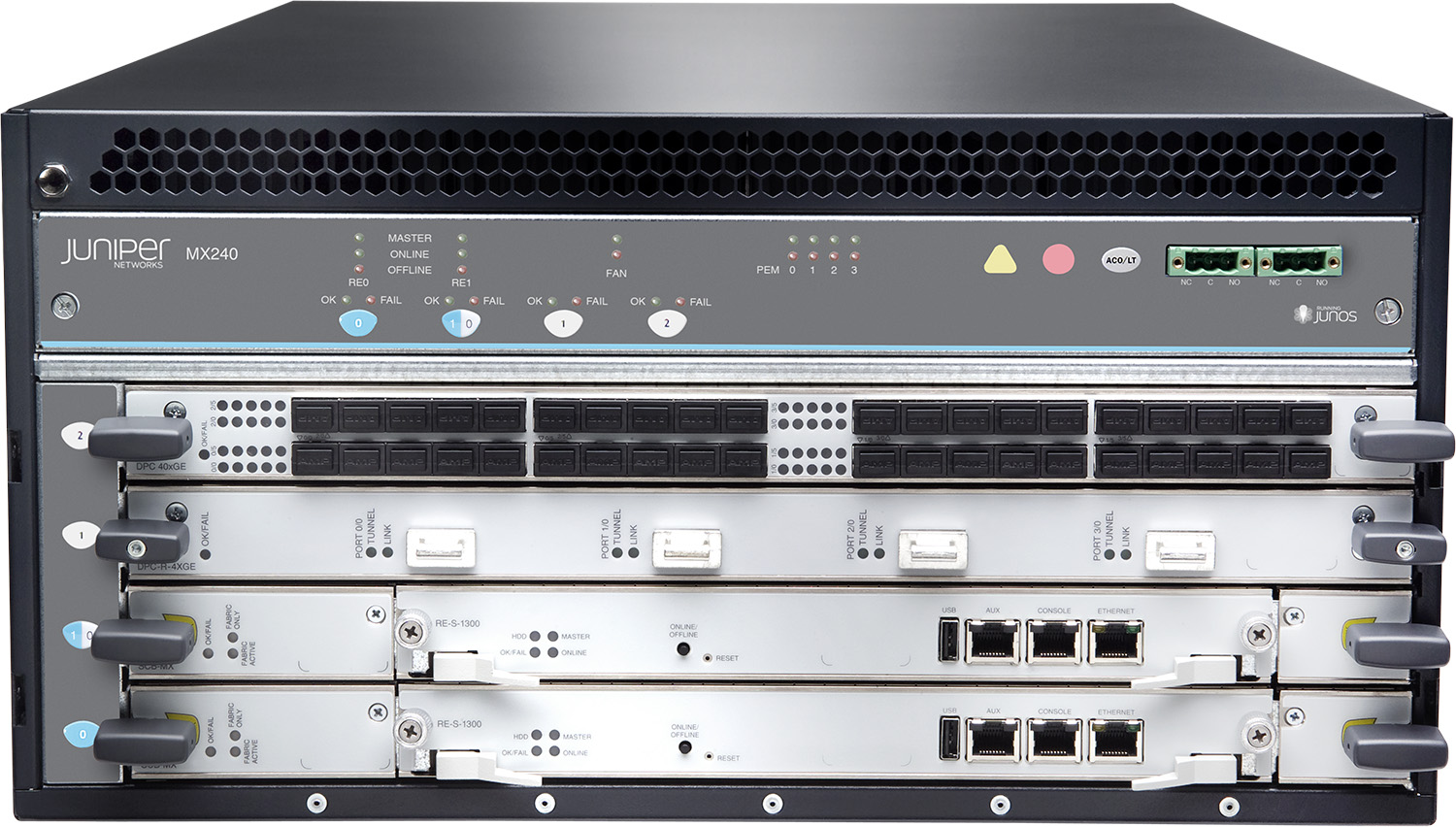

JUNIPER: MX240 3D UNIVERSAL EDGE ROUTER

Agile and compact edge router for service provider applications.

The powerful and compact MX240 3D Universal Edge Router enables support for a wide range of enterprise, business and residential services as well as data center and enterprise applications.

The SDN-ready MX240 3D Universal Edge Router delivers high performance, reliability, and scale for a wide variety of service provider and enterprise applications, including business and residential broadband services and high-volume data center internetworking.

At just five rack units (5 U), the MX240 is a compact, modular platform offering 1.92 Tbps of system capacity. It concurrently supports high-density 10GbE, 40GbE, and 100GbE interfaces and legacy SONET/SDH, ATM, and PDH connectivity. The MX240 also supports sophisticated timing capabilities, as well as Junos Fusion technology and Juniper’s Virtual Chassis technology, which help streamline network design and operation.

For cost-effective sparing and maintenance, the MX240 shares a common set of field-replaceable units (FRUs) with the MX960 and MX480, including routing, control, and switching components and line and services cards. Its resilient and fully redundant architecture provides a consistent operations and service environment.

• High-density, high-performance, full-featured router in a space-efficient form factor.

• Supports multiple levels of redundancy to meet a variety of business and technical requirements.

• Ideally suited for enterprise, data-center interconnect, and smaller service provider edge applications.

System Capacity  1.92 Tbps
Switch Fabric Capacity per Slot  480 Gbps
DPCs and/or MPCs per Chassis  2 (typical) or 3 (optional)
Chassis per Rack  9
Dimensions (W x H x D)  17.45 x 8.71 x 24.5 in (44.3 x 22.1 x 62.2 cm)
Maximum Weight  130 lbs / 59 kg
Mounting  Front or center
