| System Capacity | 10.56 Tbps |
|---|---|
| Switch Fabric Capacity per Slot | 480 Gbps |
| DPCs and/or MPCs per Chassis | 11 or 12 (depending on protection scheme) |
| Chassis per Rack | 3 |
| Dimensions (W x H x D) | 17.37 x 27.75 x 23.0 in (44.11 x 70.49 x 58.42 cm) |
| Maximum Weight | 334 lb / 151.6 kg |
| Mounting | Front or center |

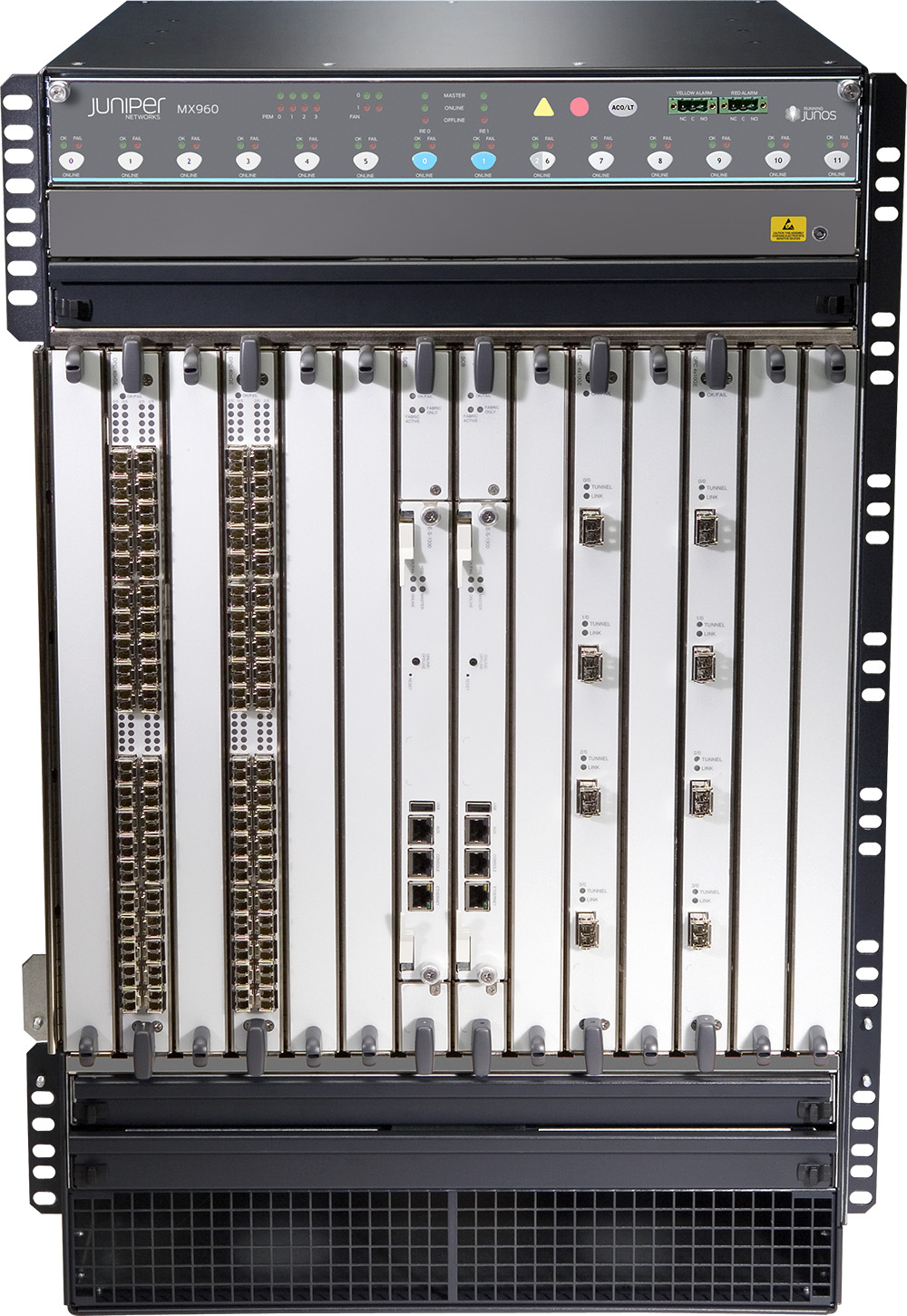

JUNIPER: MX960 3D UNIVERSAL EDGE ROUTER
JUNIPER: MX960 3D UNIVERSAL EDGE ROUTER
Reliability and performance at scale for service provider and enterprise applications.
The high-capacity MX960 3D Universal Edge Router is packed with highly scalable routing, switching, security, and service features that enable network consolidation and service convergence.
The SDN-ready MX960 3D Universal Edge Router brings high performance, reliability, and scale for service provider and enterprise applications. It offers 10.56 Tbps of system capacity in one-third of a standard telco rack, with support for high-density 10GbE, 40GbE, and 100GbE interfaces, as well as legacy SONET/SDH, ATM, and PDH connectivity.
Powered by Junos OS and the programmable Junos Trio chipset, the MX960 delivers high performance, reliability, and scale to enable a cost-effective digital transformation and ensure a positive customer experience under all network conditions. Key features include support for a wide range of L2/L3 VPN services and advanced broadband network gateway functions, along with integrated routing, switching and security services.
• Scales through 10.56 Tbps and beyond, with support for over 40 100GbE interfaces and hundreds of 10GbE interfaces to ensure investment protection.
• Integrates a wide set of services—including carrier-grade NAT (CGNAT), stateful firewall, and deep-packet inspection—at high scale, with no impact to forwarding plane performance or control plane stability.
• Seamlessly integrates with standard-based SDN controllers such as the Contrail Cloud Platform.
• Serves as an ideal anchor point for service chains that include physical and virtual elements, enabling highly elastic, automated, and customized service delivery.
Attachment:
Data Sheet
