Ideal for securing small to midsize data centers

SRX1400 Services Gateway is the ideal platform for securing small to midsize enterprise, service provider, and mobile operator data center environments.

The SRX1400 Services Gateway is a professional-grade platform for security ideally suited for small to mid-size enterprise, service provider, and mobile operator 10GbE network environments, where consolidated functionality, uncompromising performance, and services integration are required.

Integrated security intelligence offers adaptive threat protection against command and control (C&C) related botnets and Web application threats, and policy enforcement based on GeoIP data. Customers may also leverage their own custom and third-party feeds for protection from advanced malware and other threats.

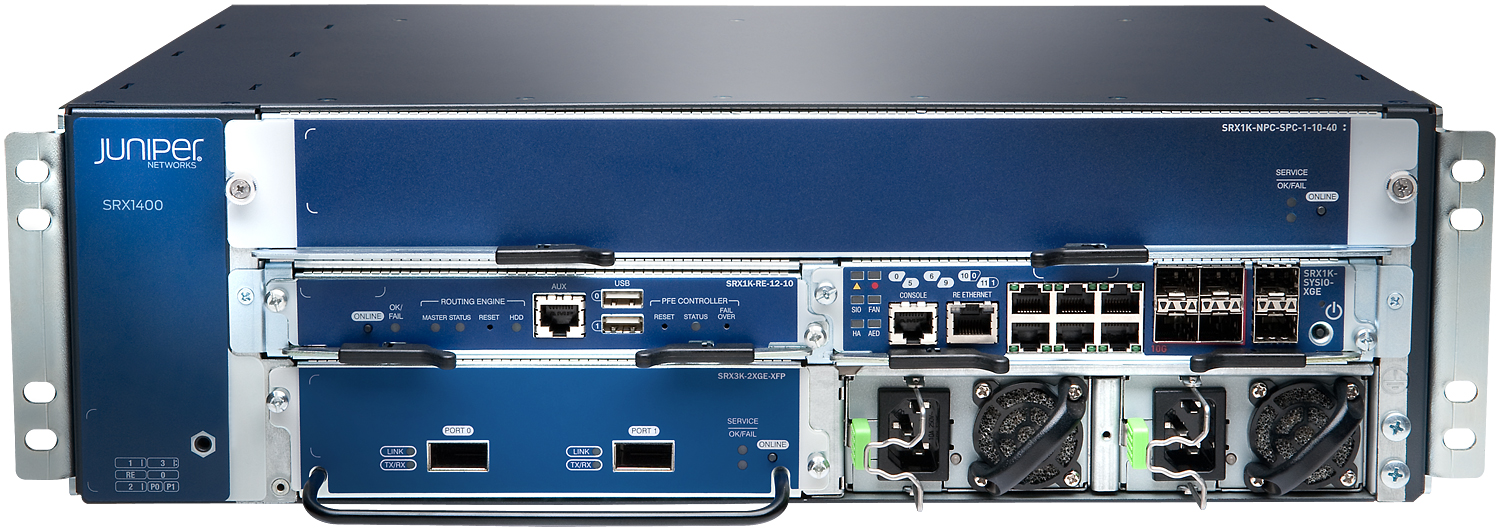

SRX1400 consolidates multiple security services and networking functions in a highly available 3 U appliance featuring a modular design that uses common form-factor modules serviceable from the front panel. It incorporates innovations that improve reliability, enhance network availability, and deliver deterministic performance of concurrent security services at scale.

A carrier-grade appliance, SRX1400 has been designed from the ground up for a long, trouble-free service life of continuous operation in demanding, high-performance data center network environments.

• Comprehensive protection includes multi-gigabit firewall, security intelligence via Spotlight Secure, policy enforcement based on GeoIP data, UTM which includes IPS, application security (AppSecure), user role-based firewall controls, antivirus, antispam, and Web filtering, NAT, DoS, and QoS.

• Scalable performance enables additional services without degradation.

• System and Network Resiliency ensures carrier-class reliability from redundant hardware and components, and Junos OS software.

• Interface flexibility meets the needs of any network.

• Network segmentation allows administrators to tailor security and policies.

• Robust Routing Engine separates data and control planes to allow deployment of consolidated routing and security devices.

Junos OS Software version tested  Junos OS 12.1X44
Firewall performance (max)  10 Gbps
IPS performance  3 Gbps
VPN performance  4 Gbps
Maximum concurrent sessions  1.5 million
New sessions/second (sustained, TCP, 3 way)  70,000
Maximum security policies  40.000
