Delivers massive scalability to secure the most challenging networks

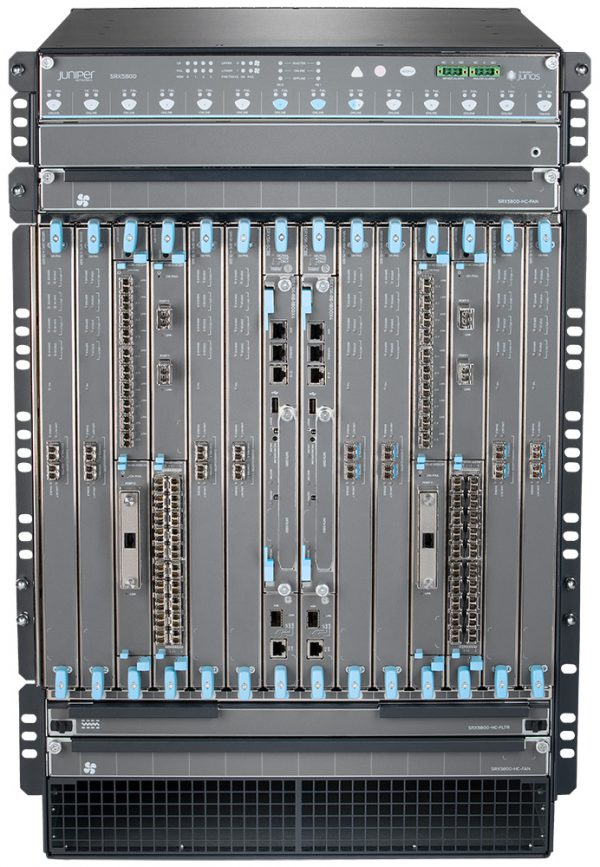

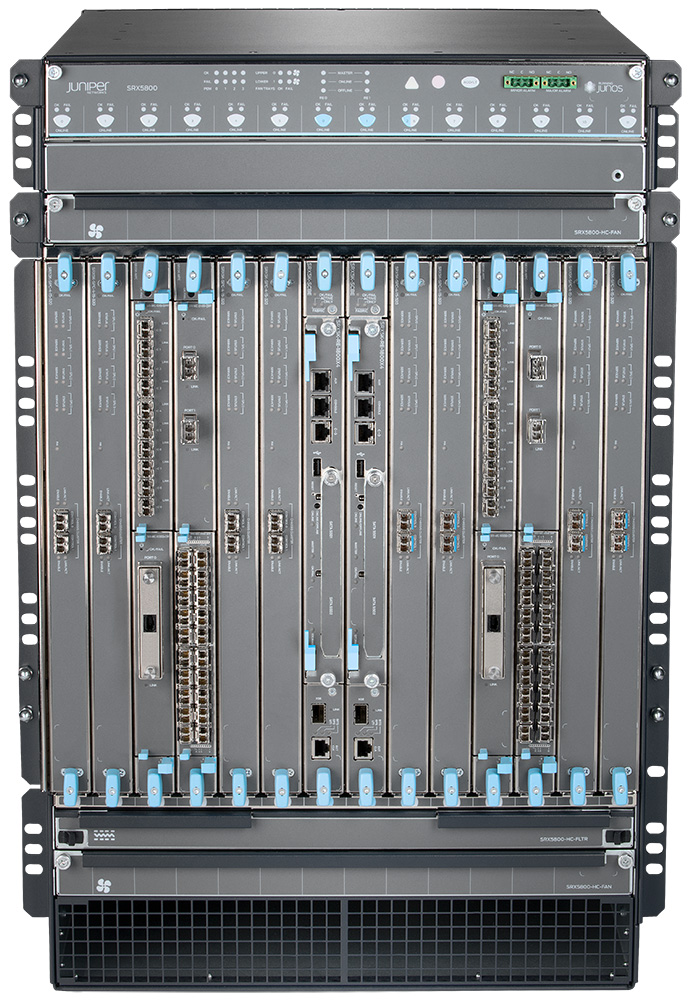

The SRX5800 Services Gateway redefines scalability, integrating security services with a record-breaking 100 million concurrent sessions and firewall performance of 2 Tbps to meet the needs of the world’s most demanding networks.

The SRX5800 Services Gateway is an award-winning, next-generation security platform based on an innovative architecture that provides outstanding performance, scalability, and service integration.

Ideally suited for service provider, large enterprise, and public sector networks, the SRX5800 supports 2 Tbps firewall, six nines carrier-grade reliability, more than 100 Gbps intrusion prevention system (IPS), and an industry record-breaking 100 million concurrent user sessions.

The SRX5800 delivers the industry’s most open and scalable threat intelligence platform. Integrated threat intelligence offers adaptive, customized protection against command and control (C&C)-related botnets and malware, as well as dynamic policy enforcement based on GeoIP and threat data, with intelligence from Juniper-provided feeds. In companies that have their own threat collection capabilities, you can also leverage the SRX5800 as an enforcement point for custom and third-party feeds, protecting against advanced threats unique to your industry.

Equipped with a full range of integrated security features, the massively scalable SRX5800 Services Gateway gives you an optimal solution for securing large enterprise data centers, hosted or colocated data centers, and service provider infrastructures.

• Comprehensive protection includes multigigabit firewall; open, actionable threat intelligence via Spotlight Secure; dynamic policy enforcement based on GeoIP and Command & Control (C&C) threat data; and support for custom and third-party threat feeds.
• Advanced security services include IPS, application security (AppSecure), user role-based firewall controls, UTM (antivirus, antispam, Web filtering), Network Address Translation (NAT), denial of service (DoS), and quality of service (QoS).
• Express Path, an optimization capability available on the next-generation line cards (IOC2), securely optimizes SRX5800 performance to improve IMIX bandwidth by identifying traffic flows that do not require additional inspection or deep processing.
• Scalable performance enables additional services without degradation.
• System and network resiliency ensures six nines of carrier-class reliability from redundant hardware and components, as well as Junos OS software.
• Interface flexibility meets the needs of any network.
• Network segmentation allows administrators to tailor security and policies.
• Robust Routing Engine separates data and control planes to allow use of consolidated routing and security devices.

Junos OS Software version tested  Junos OS 15.1×49
Firewall performance (max)  320 Gbps (2 Tbps with Express Path)
IPS performance  100 Gbps
VPN performance  200 Gbps
Maximum concurrent sessions  230 million
New sessions/second (sustained, TCP, 3 way)  2 million
Maximum security policies  Unrestricted
